D-Line Micro & Micro+ Cable Trunking
16x8mm (Micro) & 20x10mm (Micro+)
D-Line Micro Trunking profiles are ideal for covering single flexible cables, with Micro Cable Trunking providing options in the tightest of spaces.
Features
- Micro trunkings give options for covering cables around tight spaces, often fitting around door frames for example… trunking profiles can also discreetly hide cables on walls, as the decorative cable covers blend with décor.
- D-Line Micro 16x8mm Trunking can cover single flexible cables, up to 6mm outer diameter.
D-Line Micro+ 20x10mm cable hider can accommodate flexible cables, up to 8mm outer diameter.
Please note larger Mini & Maxi trunking profiles are also available. - Strong self-adhesive backing enables easy peel & stick installation - all D-Line trunking lengths can be drilled & screw fixed for added stability.
- One-piece design & patented click-lock lid for quick and easy installation… while also providing flexibility to add or remove cables.
- To give your cable cover installation a perfect finish Trunking Accessories are available.
Residential Applications

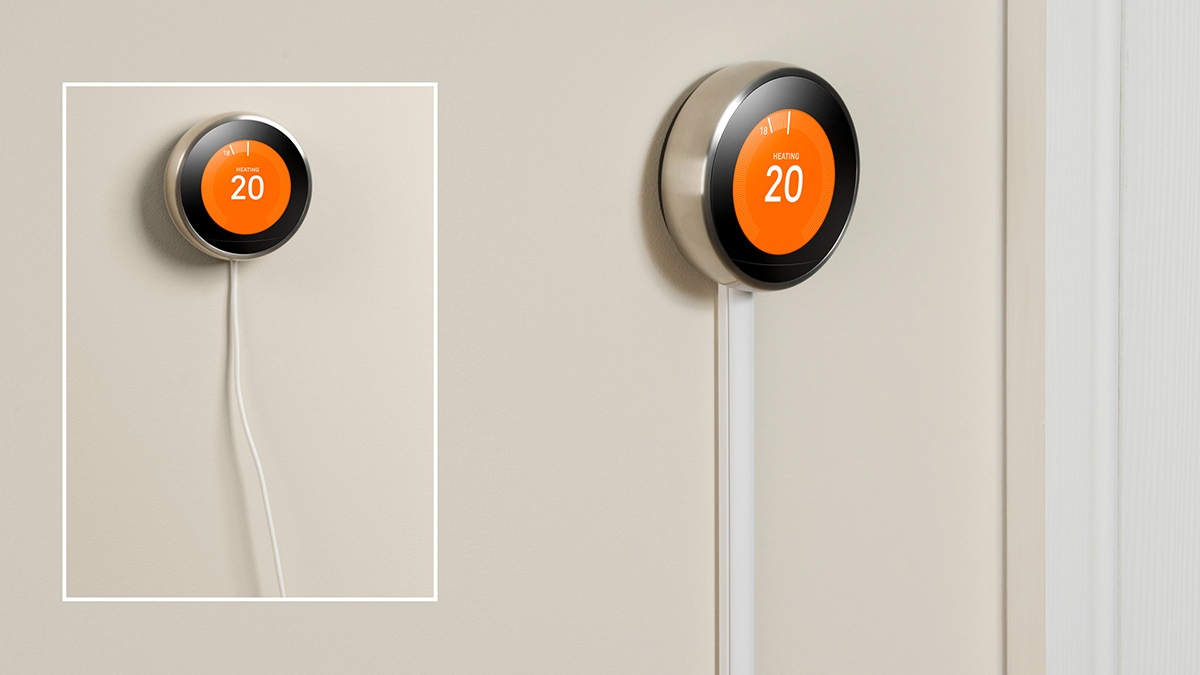

Cover cables from smart home devices
Conceal telephone cables
How to install with Smooth-Fit Accessories (Mini shown in video)
How to install with Clip-Over Accessories (Micro+ shown in video)
Step 1
Measure length to required size, pencil mark where cut will be made.
Step 2
Use a junior hacksaw (minimum of 32 tpi) to cut length, at the outer edge of the pencil mark.
Step 3
Remove the protective film cover.
Step 4
Peel & stick self-adhesive backing to a clean dry surface. Take care when positioning lengths as adhesive backing does create a strong bond. Alternatively, lengths can be drilled and screw fixed.
Step 5
Open hinged lid to add cables, then snap lid shut, utilising the effective ‘click lock’ lid.
Step 6
The tabs of D-Line accessories simply clip-over the lengths (forgiving any imprecise cuts). *Clip-Over Accessories only available for Micro+ Trunking (i.e. 20x10mm profile).
Accessories for D-Line trunkings are designed for ‘easy installation, look great!’
Check out videos to see how our accessories make it easy to navigate 90 degree corners and connect additional lengths.Dimensions
Micro Trunking
Width = 16mm Height = 8mm
Length options = 1, 2 & 3 metre lengths
Micro+ Trunking
Width = 20mm Height = 10mm
Length options = 1, 2 & 3 metre lengths
Colour options
White
Black
Magnolia
Aluminium-effect*
Oak-effect*
Paintable**
* 16x8mm available as white, black, magnolia, aluminium-effect, oak-effect. 20x10mm available as white, black, magnolia.
** All lengths can be painted for the perfect finish. Painting... sandpaper, then paint can be applied for best results.
