D-Line Trunking Accessories
Clip-Over & Smooth-Fit

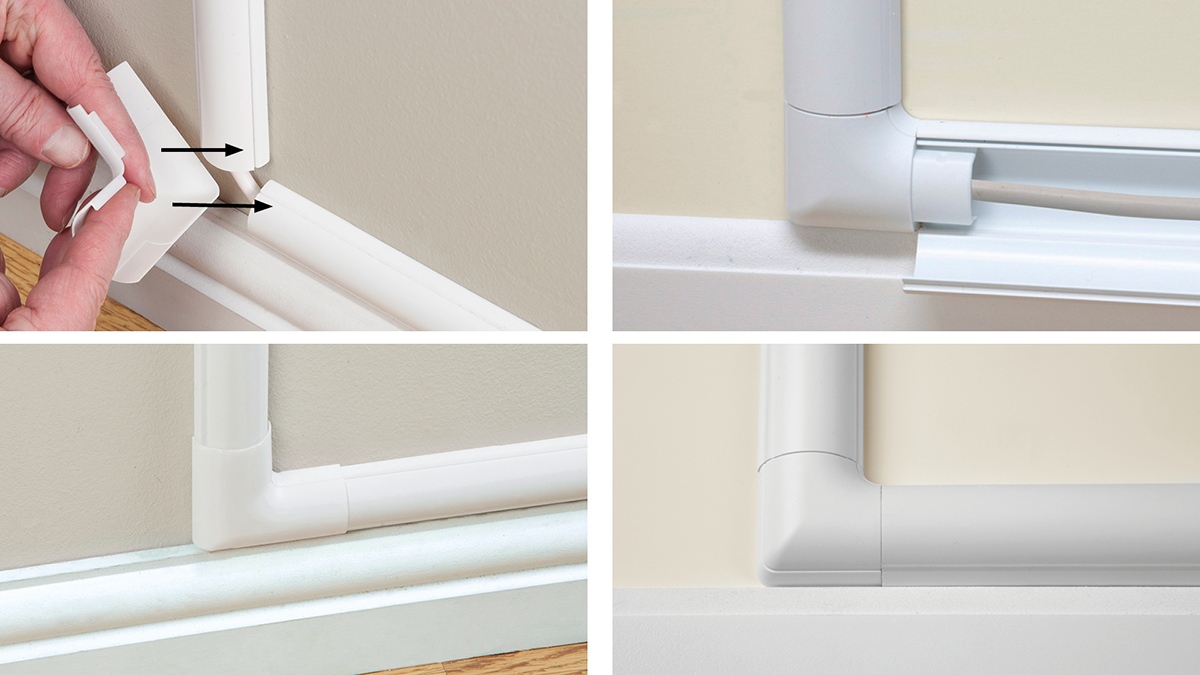

D-Line Accessories connect D-Line lengths, and enable a perfect finish around corner bends. Two types of D-Line Accessories available, Clip-Over & Smooth-Fit. 16x8mm Micro Trunking accessories & couplers for all D-Line lengths, are always smooth-fit. 20x10mm Micro+ Trunking bends & tees are always clip-over. For D-Line 30x15mm, 50x25mm, 22x22mm lengths, both clip-over and smooth-fit accessory options are available
Clip Over Accessory Features
- Design forgives rough or oblique cuts, and imprecise measuring
- Simple Clip-Over fitting, accessories have rear grip tabs for secure fitting
- Colour matched to trunking lengths
- Paintable to match décor.
Smooth-Fit Accessory Features
- Smooth flush finish
- Internal shoulders fit securely under lengths
- Colour matched to trunking lengths
- Paintable to match décor.
Clip-Over Accessories Available for
22mm (W) x 22mm (H) - Quarter Round20mm (W) x 10mm (H) - Micro+
30mm (W) x 15mm (H) - Mini
50mm (W) x 25mm (H) - Maxi
Smooth-Fit Accessories Available for
22mm (W) x 22mm (H) - Quarter Round16mm (W) x 08mm (H) - Micro
30mm (W) x 15mm (H) - Mini
50mm (W) x 25mm (H) - Maxi
Clip-Over Accessories
Internal Bend
Join lengths around
90º inside corners.
90º inside corners.
External Bend
Join lengths around
90º outside corners.
90º outside corners.
Flat Bend
Change direction by
90º on flat surfaces.
90º on flat surfaces.
Equal Tee
Use to join 3 lengths
of same profile.
of same profile.
Door Top Bend
Change direction by
90º around frame tops.
30x15mm only
90º around frame tops.
30x15mm only
Box Adaptor Tee
For use with D-Line
Surface Socket Boxes.
50 x 25mm only
Surface Socket Boxes.
50 x 25mm only
Flat Adaptor
Connect Mini Trunking
to flat surfaces
30 x 15mm only
to flat surfaces
30 x 15mm only
Internal Bend - ¼ Round
Join lengths around
90º inside corners.
90º inside corners.
External Bend - ¼ Round
Join lengths around
90º outside corners.
90º outside corners.
Cable Inlet/Outlet - ¼ Round
Use to provide cable entry/exit point between 2 lengths.
Smooth-Fit Accessories
Internal Bend
Join lengths around 90º
inside corners.
inside corners.
External Bend
Join lengths around 90º
outside corners.
outside corners.
Flat Bend
Change direction by
90º on flat surfaces.
90º on flat surfaces.
Equal Tee
Use to join 3 lengths
of same profile.
of same profile.
Coupler
Join 2 lengths of same
profile on flat surface.
profile on flat surface.
End Cap
Neatly finish open ends.
Pattress Adaptor
Connect Mini Trunking
to round surface pattresses.
30 x 15mm only
to round surface pattresses.
30 x 15mm only
Circular Adaptor
Connect Mini Trunking to
flat edge surfaces with
20mm Ø knock-outs.
30 x 15mm only
flat edge surfaces with
20mm Ø knock-outs.
30 x 15mm only
Cable Inlet/Outlet
Takes cables in or out of Mini Trunking. Use between
lengths on straight runs.
30 x 15mm only
lengths on straight runs.
30 x 15mm only
Box Adaptor
For use with D-Line
Surface Socket Boxes.
30 x 15mm only
Surface Socket Boxes.
30 x 15mm only
Box Adaptor Tee
For use with D-Line
Surface Socket Boxes.
Surface Socket Boxes.
Reducing Tee
Connect to 30 x 15mm
Mini Trunking.
Mini Trunking.
Internal Bend - ¼ Round
Join lengths around
90º inside corners.
90º inside corners.
External Bend - ¼ Round
Join lengths around
90º outside corners.
90º outside corners.
Cable Inlet - ¼ Round
Use to provide cable entry
point between 2 lengths.
point between 2 lengths.
Cable Outlet - ¼ Round
Use to provide cable exit
point between 2 lengths.
point between 2 lengths.
Coupler - ¼ Round
Joins 2 lengths on flat surfaces.
End Cap- ¼ Round
Neatly finish open ends
(left & right versions apply).
(left & right versions apply).
How to install Clip-Over Accessories
How to install Smooth-Fit Accessories
D-Line Trunking profiles
Micro Trunking
16x8mm
Micro+ Trunking
20x10mm
Mini Trunking
30x15mm
Maxi Trunking
50x25mm
Maxi+ Trunking
60x30mm
¼ Round Trunking
22x22mm
