D-Line Quarter Round Cable Trunking

22x22mm (Quarter Round)

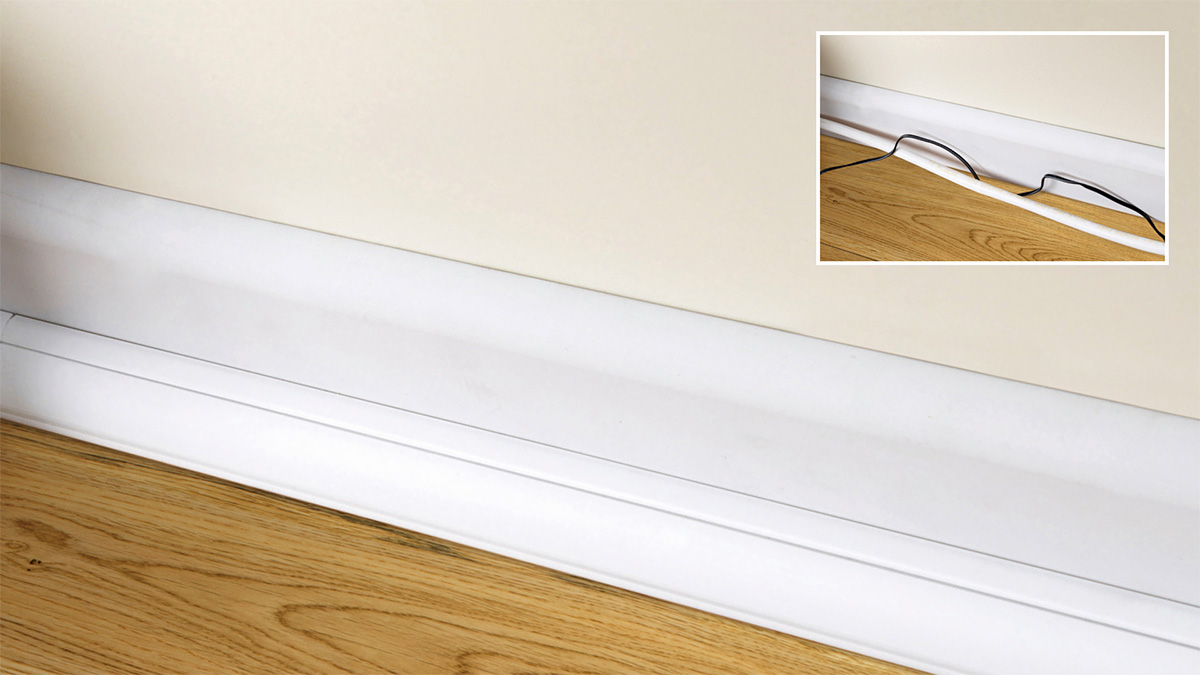

D-Line 22x22mm Quarter Round Trunking covers expansion gaps between floors and skirting, while providing an easy-to-use cable cover around floor perimeters.

Features

The 22 x 22mm (W x H) dimensions scale well to blend with popular skirting boards, while providing capacity for cable bending radii around corners.
All lengths are supplied with strong self-adhesive backing for peel & stick installation - lengths can be drilled & screw fixed for added stability.
One-piece design & patented click-lock lid for quick and easy installation… while also providing flexibility to add or remove cables.
D-Line 22x22mm Trunking features combine to enable approximately 50% quicker installation versus traditional floor trims.
To give your cable cover installation a perfect finish Trunking Accessories are available, saving need to mitre cut corners.

Residential Applications

Hide cables in the corner of rooms

Learn more… Floor Trim That Hides Cables

Cover cables on TV units

Tidy kitchen worktop cables with CableTraC

Learn more about CableTraC

How to install

Step 1

Measure length to required size, pencil mark where cut will be made.

Step 2

Use a junior hacksaw (minimum of 32 tpi) to cut length, at the outer edge of the pencil mark.

Step 3

Remove the protective film cover.

Step 4

Peel & stick self-adhesive backing to a clean dry surface. Alternatively, lengths can be drilled and screw fixed. (Take care when positioning lengths as adhesive backing does create a strong bond).
