D-Line Mini Cable Trunking

30x15mm (Mini)

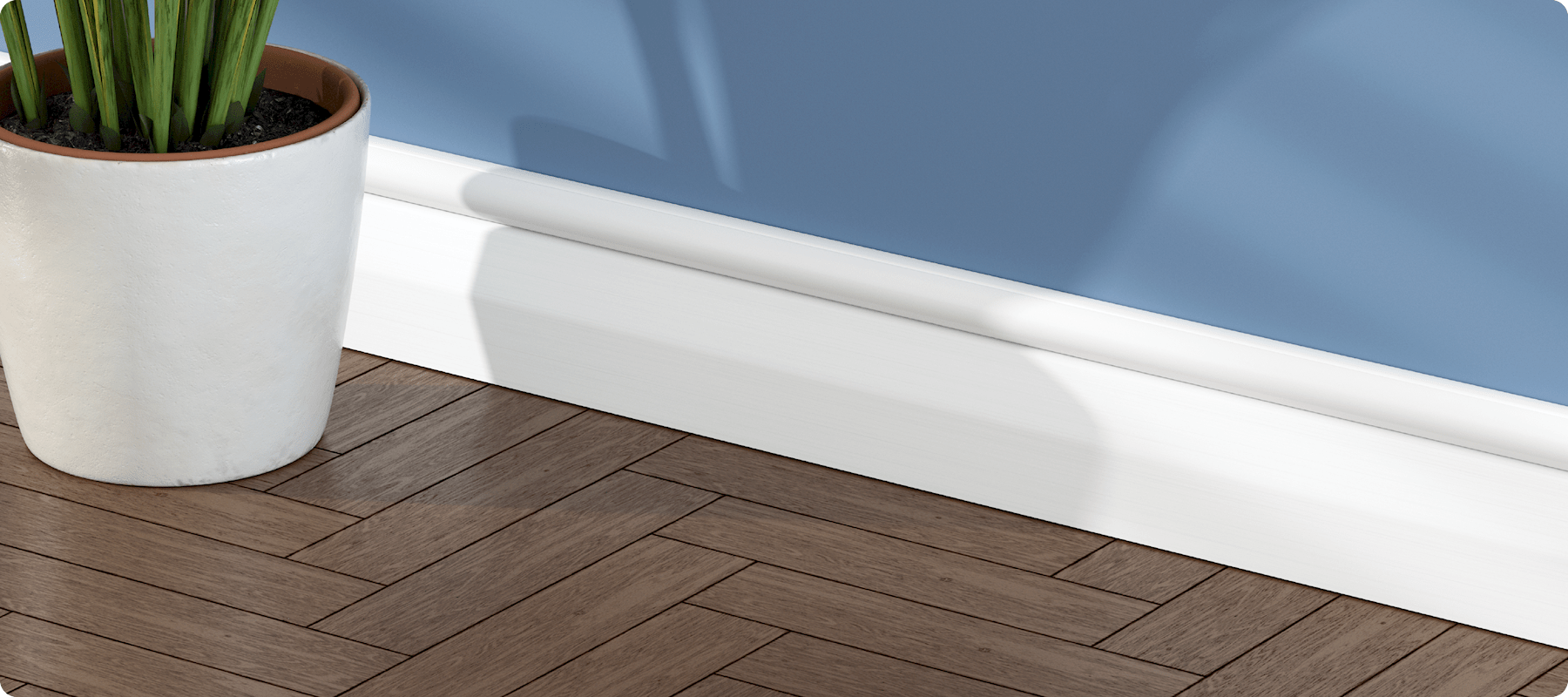

D-Line Mini Trunking is ideal for covering cables above skirting boards, where the half round shape blends to resemble the natural top-section of skirting board. Mini Trunking also offers a modern solution to hide cables on vertical cable drops and runs across ceilings.

Features

Stylish half round profile of D-Line Mini Cable Trunking subtly blends with décor, avoiding the need to bury cables behind walls.
D-Line Mini 30x15mm Trunking can contain up to 3x flexible cables (based on 8mm diameter cables).
Please note, smaller Micro & larger Maxi profiles are also available.
Strong self-adhesive backing enables easy peel & stick installation - all D-Line trunking lengths can be drilled & screw fixed for added stability.
One-piece design & patented click-lock lid for quick and easy installation… while also providing flexibility to add or remove cables.
To cover cables around a variety of popular angles Trunking Accessories are available.

Residential Applications

Skirting Board Trunking solution

The ½-round shapes blend above skirting boards, as the rounded finish makes a stylish feature. Simply peel and stick, or drill and screw-fix for easy attachment.

TV cable tidy

Mini Trunking profile is often preferred for TVs 32” or smaller, for >32” TVs Maxi Trunking is preferred.
Learn more… How to hide wall mounted TV cables

Wall Cable Cover

Great for covering cables on flat surfaces.
Also available - hide cables around floor perimeters with D-Line Quarter Round Trunking.

How to install

Trunking

Step 1

Measure length to required size, pencil mark where cut will be made.

Step 2

Use a junior hacksaw (minimum of 32 tpi) to cut length, at the outer edge of the pencil mark.

Step 3

Remove the protective film cover.

Step 4

Peel & stick self-adhesive backing to a clean dry surface. Alternatively, lengths can be drilled and screw fixed. Take care when positioning lengths as adhesive backing does create a strong bond.
