Safe-D® F-Clips
F-Clips are fire-rated flexible cable supports that are supplied in flat form, and can be folded in seconds to make a variety of shapes to most effectively secure cable installations.
Users simply fold upright those notches which are either side of the base fixing hole (5.7mm dia); to make the required shape that can fit direct-to-surface or inside non-metallic trunking systems.
The flat-form is also ideal for shot-fired fixings which can be first-fixed, before sides are inwardly folded to effectively wrap around cables.- >1200°C melting point

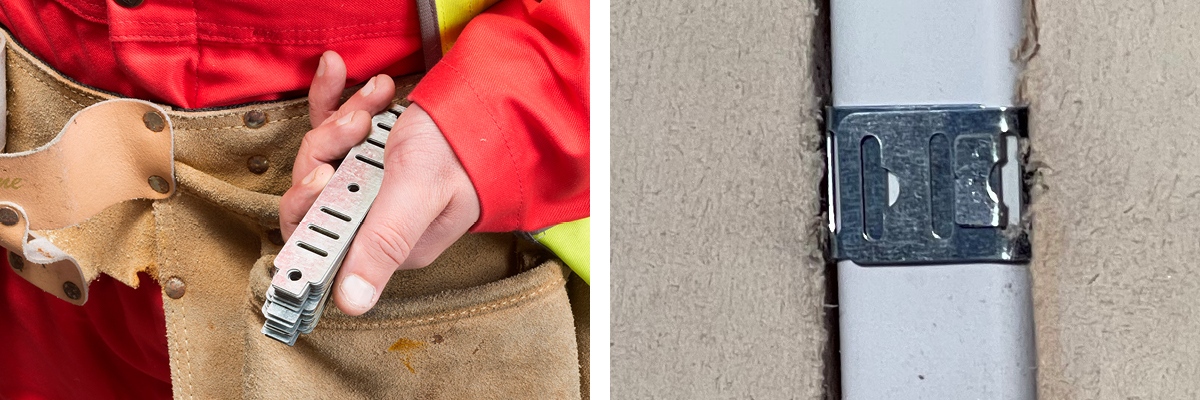

- Space efficient and pocket friendly
- Uniquely versatile - many possibilities
- Easy folding to required shape, to suit space & cable volume
- 3x fixing holes
- F-Clip 40 and 50 locking tabs can be return-folded for extra security if preferred
- Slots enable use as a cable tie base
Dimensions
F-Clip 30 - 56mm (L) x 20mm (W) x 8mm (H) (folded - max height)F-Clip 40 - 110.5mm (L) x 20mm (W) x 20mm (H) (folded - max height)
F-Clip 50 - 165mm (L) x 20mm (W) x 35mm (H) (folded - max height)
Safe-D F-Clip 30
Flat, Flexible, Foldable & Fire-Rated: Safe-D F-Clip 30 is a fire-rated flexible cable clip that is supplied in flat form, and can be quickly folded to effectively secure cable installations. Users simply fold upright those notches which are either side of the 5.7mm fixing hole; to make a U-shape for use in 25x16mm mini-trunking, or D-Line 30x15mm mini-trunking. The flat-form is also ideal for shot-fired fixings which can be first-fixed, before sides are inwardly folded to effectively wrap around cables. Side notches can also be used to thread steel cable ties, useful for securing larger bundles of cables. Installers should use a fire-rated fixing, such as D-Line D-Fixings, and then simply fold-over tabs to secure cables.
Safe-D F-Clip 40
Flat, Flexible, Foldable & Fire-Rated: Safe-D F-Clip 40 is a fire-rated flexible cable clip that is supplied in flat form, and can be quickly folded to make a variety of shapes to most effectively secure cable installations.
Installers can pass the locking tab through a choice of opposing notches, according to the volume of cables to be secured - and to make the required shape.
Safe-D F-Clip notches can be flexed (for example to open for adding or removing cables) up to five times, after which replacement F-Clips should be used.
The locking tab gives greatest security, and can be return-folded if preferred.
Installers should use a fire-rated fixing, such as D-Line D-Fixings, and then simply fold-over tabs to secure cables.
Safe-D F-Clip 50
Flat, Flexible, Foldable & Fire-Rated: Safe-D F-Clip 50 is a fire-rated flexible cable clip that is supplied in flat form, and can be quickly folded to make a variety of shapes to most effectively secure cable installations. The first notches (either side of the 5.7mm hole) can be simply folded to make vertical tabs; with the base being perfect for use in 50mm width non-metallic trunking. The locking tab can then be passed through any opposing notch, according to the volume of cables to be secured. Being 165mm long, this F-Clip is most versatile, and can be easily shaped however required, while users appreciate the pocket-friendly design saves handling and fitting time. In fire-conditions D-Line fire clips can withstand 970ºC for at least 2 hours, assuring that cable installations will not collapse. F-Clips have been extensively fire-tested on both wall planes and underside ceilings. Installers should use a fire-rated fixing, such as D-Line D-Fixings, and then simply fold-over tabs to secure cables.
Alternative Products
U-Clips
Conduit Saddles
Adjustable Clips
EV Cable Fixing Packs
Stag Clips
T&E Grip Clips
Spring Clip
Retro Clips
Steel Cable Ties
D-Fixings
Drill Bits
Tests confirmed that all products can hold cables secure in temperatures of 930ºC (+40 -0ºC) for 2 hours. Safe-D®
products also withstand required levels of shock, vibration and water spray. Copies of reports are available on request.
