HOW TO HIDE SPEAKER CABLES WITH
D-LINE 0.78” (W) X 0.39” (H) RACEWAY.

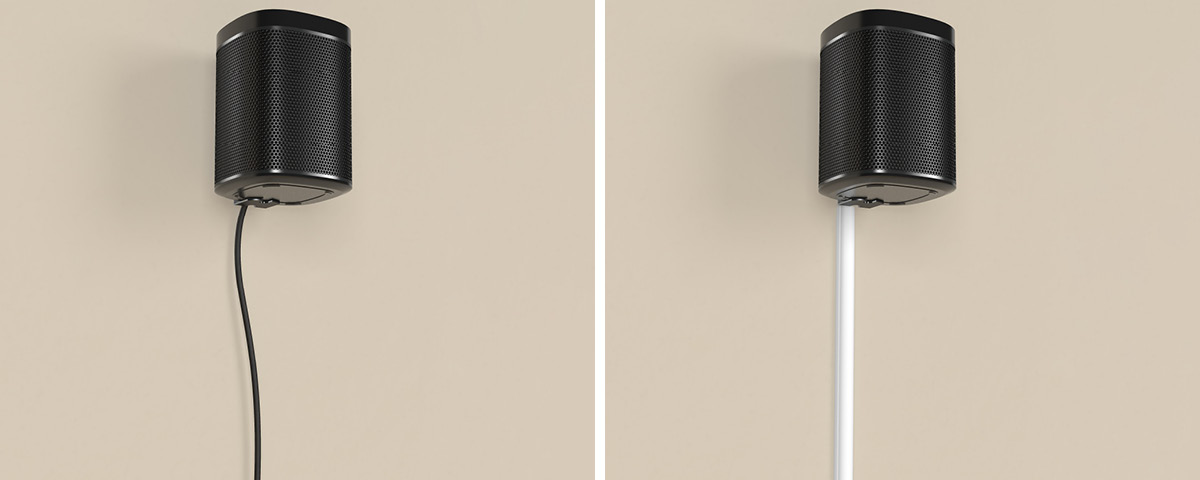

D-Line 0.63x0.31in & 0.78x0.39in Raceway are popular solutions for covering single speaker cables - the half round profiles neatly hide cables, without the hassle & disruption of burying cables behind walls.

To hide speaker cables in D-Line Trunking:

Step 1

400px_fitting_1
Measure length of the speaker cable you’re looking to cover.

Step 2

400px_fitting_2
Pencil mark raceway length where cut will be made.

Step 3

400px_fitting_3
Use a junior hacksaw (minimum of 32 tpi) to cut length, at the outer edge of pencil mark.

Step 4

400px_fitting_4
Peel & stick self-adhesive backing to a clean dry surface. Alternatively, lengths can be drilled and screw fixed. Take care when positioning lengths as adhesive backing does create a strong bond.

Step 5

400px_fitting_5
Remove the protective film cover.

Step 6

400px_fitting_6
Open hinged lid to add speaker cable, then snap lid shut, utilising the effective ‘click lock’ lid.

Step 7

400px_fitting_7
The tabs of D-Line accessories simply clip-over the lengths (forgiving any imprecise cuts). *Clip-Over Accessories only available for 0.78x0.39in Raceway.
