Safe-D® F-Clips

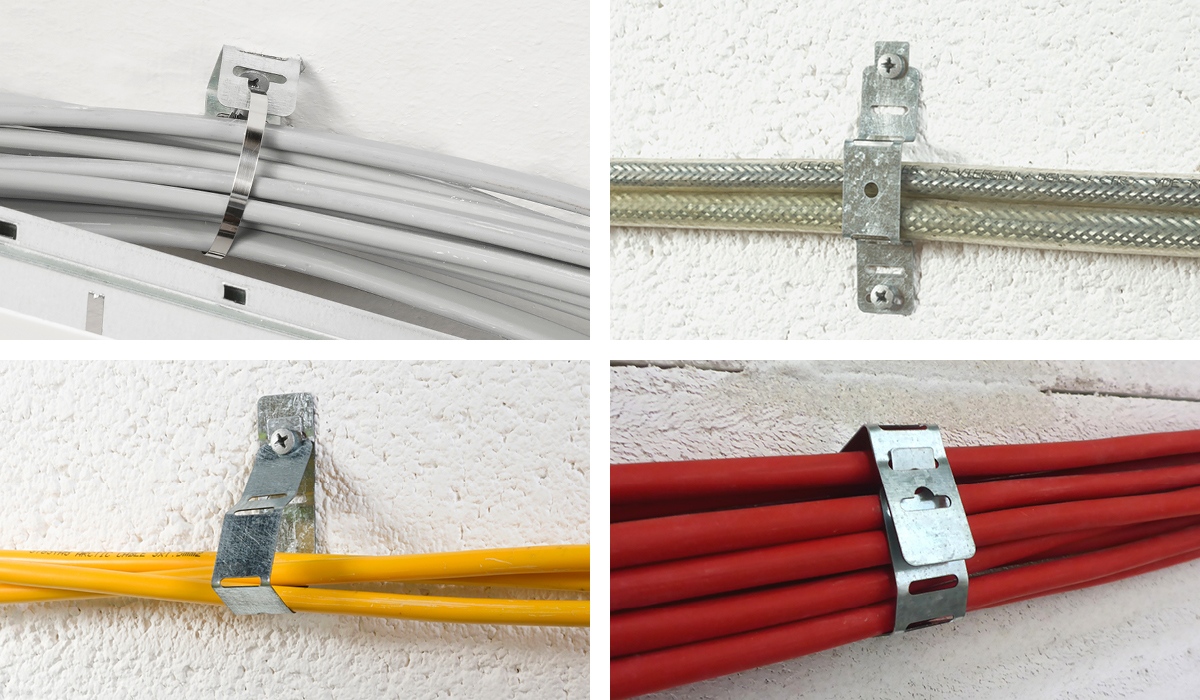

F-Clips are fire-rated flexible cable fasteners that are supplied in flat form, and can be folded in seconds to make a variety of shapes to most effectively secure cable installations.

The combination of the pliable gauge steel & rounded corner features make Safe-D F-Clips quick & easy to install. Three sizes are available to hold surface-mounted cables, or in non-metallic raceways having 1” to 2” wide bases… while PVC raceways typically melt around 320°F, in fire conditions the F-Clip survives to hold cable(s) for up to 2 hours.

Use D-Line D-fixing screws to secure F-Clips, eliminating plastic anchors (which can be unsuitable in fire conditions). After screw-fixing to secure F-Clips, users simply fold the notches which are either side of the base fixing hole (0.22” / 5.7mm dia) to make the required shape.

Space efficient and pocket friendly
Uniquely versatile - many possibilities
Easy folding to required shape, to suit space & cable volume
3x fixing holes
>1780°F melting point
F-Clip 40 and 50 locking tabs can be return-folded for extra security if preferred
Slots enable use as a cable tie base

Dimensions

F-Clip 30 - 2.2” (L) x 0.8" (W) x 0.31" (H) (folded - max height)
F-Clip 40 - 4.35" (L) x 0.8" (W) x 0.8" (H) (folded - max height)
F-Clip 50 - 6.5" (L) x 0.8" (W) x 1.38" (H) (folded - max height)

Safe-D F-Clip 30

Flat, Flexible, Foldable & Fire-Rated Safe-D F-Clip 30’s can be shaped to wrap around cable installations.

To secure F-Clips, installers should use a fire-rated D-Fixing screw or equivalent, and then simply fold-over pliable tabs to secure around the cable(s).

The F-Clip 30 size can be accommodated in 1” wide non-metallic raceways also, or in D-Line Mini Raceway 1.18” wide. As an alternative use, the side notches can be used to thread steel cable ties; useful for securing larger bundles of cables.

Safe-D F-Clip 40

Flat, Flexible, Foldable & Fire-Rated Safe-D F-Clip 40’s can be folded to form a variety of shapes.

To secure F-Clips, installers should use a fire-rated D-fixing screw or equivalent, and then simply fold the pliable tabs into required shape before inserting the cable(s).

Safe-D F-Clip notches can be flexed (for example, to open for adding or removing cables) up to five times, after which replacement F-Clips should be used.

A locking tab enables additional security and can be return-folded if preferred.

Safe-D F-Clip 50

Flat, Flexible, Foldable & Fire-Rated Safe-D F-Clip 50’s can be folded to form a variety of shapes.

To secure F-Clips, installers should use a fire-rated D-fixing screw or equivalent, and then simply fold the pliable tabs into required shape before inserting the cable(s).

Safe-D F-Clip notches can be flexed (for example, to open for adding or removing cables) up to five times, after which replacement F-Clips should be used.

A locking tab enables additional security and can be return-folded if preferred.

Being 6.5” / 165mm long, the F-Clip 50 is most versatile, and can be easily shaped however required, while users appreciate the pocket-friendly design makes handling easier.

In fire-conditions D-Line fire clips can withstand 1780ºF for at least 2 hours, assuring that cable installations will not collapse. F-Clips have been extensively fire-tested on both wall planes and underside ceilings.

Installers should use a fire-rated fixing, such as D-Line D-Fixings, and then simply fold-over tabs to secure cables.
