D-Line Cable Protectors

Light & Medium Floor Cable Covers

D-Line Cable Covers are high quality solutions to protect trailing cables, and minimise trips & falls… alternative profiles are available to cover cables under pedestrian traffic.

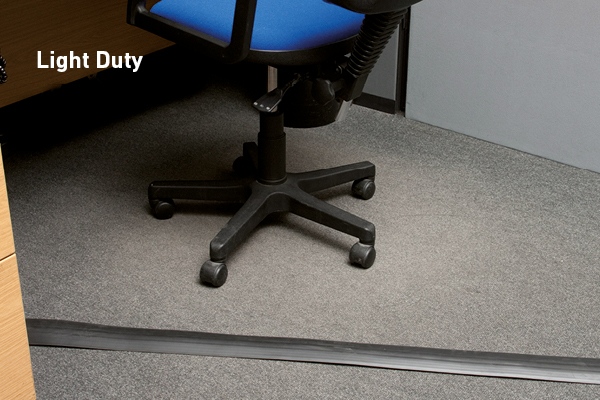

Light Duty Floor Cable Cover

Popular as a temporary solution to cover cables across open areas with light foot traffic.

Light Duty Floor Cable Cover Features

Flexible PVC – neat, tapered design lengths simply uncoil to lay flat
Address a common cause of trips, tugs and falls
Can protect up to 2x 8mm diameter cables
Ribbed non-slip base, pre-split rear cable cavity for ease of use
Fully safety tested. Certified to BS EN 60670-1:2005

Dimensions

CC-1

1.8m (L) x 60mm (W) x 12mm (H)
9m (L) x 60mm (W) x 12mm (H)
Cable Cavity = 17mm (W) x 9mm (H)

Medium Duty Cable Protector

Medium Duty Floor Cable Protectors address cable trip hazards while providing effective protection for cables. The unique connector pins allow the user to join multiple lengths… covering whatever length of cable is required. It can be insufficient to cover only part of a trailing cable!

Medium Duty Floor Cable Protector Features

2x friction-fit connector pins supplied per pack…
rejoin previously cut lengths or join multiple lengths.
Flexible PVC - Neat tapered design, lengths uncoil to lay flat
Ribbed non-slip base, pre-split rear for ease of use
Heavier gauge material ideal for areas with regular foot traffic
Fully safety tested certified to BS EN 60670-1:2005

Dimensions

FC68B

9m (L) x 68mm (W) x 14mm (H)
Cable Cavity = 14mm (W) x 9mm (H)

FC83B & FC83H

1.8m (L) x 83mm (W) x 14mm (H)
9m (L) x 83mm (W) x 14mm (H) (FC83B only available in 9m)
Cable Cavity = 30mm (W) x 10mm (H)
